Laboratory Safety Laptop / Cell Phone / Lithium Battery Operated Washing Test Machine
General Introduction
Battery Washing Test Machine design and produced according to national standard GB portable lithium ion battery and battery pack for electronic products. Lithium ion battery easy get short circuit under 45 ℃ alkaline solution. Simulate safety problem which may occur when lithium ion battery inside polyester fabric in the running washing machine.
Application
1. Portable type electronic use lithium battery pack.
2 Lithium battery pack which able to put in pocket or portable type which used for electronic products.
3 Other electronic products use portable battery packs.
4 Non user replaceable battery/battery pack for electronic products.
The schematic diagram of the test device for the washing tester (see Appendix F) is as follows:

Features
1.Built in SUS316#stainless steel water tank,used for alkaline solution proportion and testing liquid recollection.
2.High performance plastic water pump, able to get the alkaline solution from the stainless steel tank to the testing barrel in certain time, and the plastic material pump will not get rust or Oxidate, with long life service.
3.Testing inner barrel with SUS316# mirror treated stainless steel, good appearance and acid base resistant, middle with polyurethane insulation material, external with ,SUS304#stainless steel
4.PLC + Touch Screen Control, system finish the whole test automatically.
5.Driving system with servo motor, with features like large torque, Large rotational speed span, stable running etc.
6.Temperature control system, with siemens temperature module, PID auto calculating, high precision and stable running.
7.Easy water adding design:water tank top with large open design, when need adding water, the whole cover can be take off. Other time can cover it, safety and dust proof.
8.Humanized operation design:the whole operation finish within height1 meter to 1.5 meters, no need operators to stay down or get higher purposely ,all operation can be finished smoothly.
9.Movable Function Design:installed 4 universal wheel and casters on bottom side of the chamber, which makes the machine easy move to certain place as they want, and easy for fixing the machine.
Main Technical Parameters:
Model | BE-8109 |
Instruction | All-in-one structure, install explosion-proof lock + explosion-proof door |
Testing Rotary Plate Diameter | 500±10MM |
Inner Barrel Diameter | 650MM |
Inner Barrel Depth | 550MM |
Plate Rotation Speed Range | 1—900rpm/min controllable |
Speed Accuracy | 1% |
Control System | PLC touch control + Remote control |
Control Method | Programmable, fully automatic testing. Returning to origin - adding water - raising - heating - dropping - soaking - stirring - draining - dewatering - de-cylindering - drying - complete. |
Servo Motor | Japan Panasonic servo motor |
Liquid Temperature Range | RT+10℃ ~ 80℃(controllable) |
Water Temperature Deviation | ±2℃ |
Water Temperature Accuracy | 0.1℃ |
Water Temperature Heating Rate | RT ~ 45℃ ,Less than 40min |
Drying Temperature Range | RT+10℃ ~ 80℃(controllable) |
Wind Temperature Deviation | ±2℃ |
Wind Temperature Display Accuracy | 0.1℃ |
Wind Temperature Heating Rate | RT ~ 45℃ ,Less than 40min |
Water Control Method | Automatic water pump |
Heating Control System | Heating tube: water temperature control heating and thermostat control heating control separately |
Transmission System | Driven by motor, screw drive control lift |
Power Supply | AC 380V /14.0KW |
Total Dimension | W1150 X H1780 X D1550 MM |

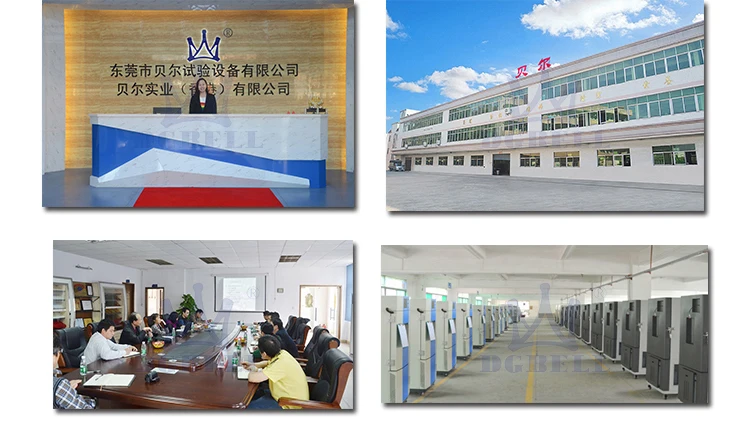

Company Information


DongGuan Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.
Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.
Packaging & Shipping

Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.


Certifications

FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Laboratory Safety Laptop / Cell Phone / Lithium Battery Operated Washing Test Machine. Every machine from our factory has a 12 months product warranty. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
